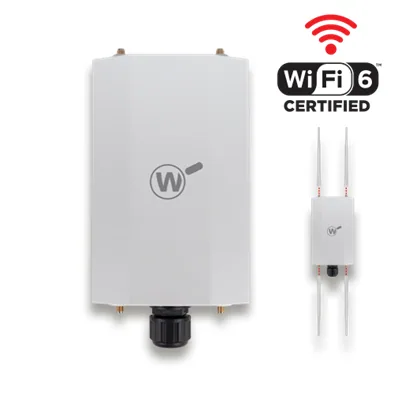

WatchGuard AP332CR
IP67-rated outdoor Wi-Fi 6 with 2x2 OFDMA, a 2.5 GbE port, four external SMA antennas and PoE+ power.
- IP67-rated sealed enclosure for harsh outdoor environments
- Wi-Fi 6 (802.11ax) with WPA3 encryption
- Four external 5 dBi SMA-type antennas
- Up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Single 2.5 Gigabit weatherproof port, powered over 802.3at PoE+
Hardware & subscription options
Every orderable WatchGuard part number for this appliance, grouped by licensing tier. Pick the line you need and we will quote it — hardware, licence term and support in one place.
Appliance Only
The Firebox hardware on its own, with no security subscription attached. Choose this only if you are adding the unit to an existing licence pool.
WatchGuard AP332CR Appliance
-
WatchGuard AP332CR Appliance Only #WGAP332000Get a Quote
Standard Wi-Fi Management
WatchGuard Cloud management with 24/7 support and hardware warranty: radio, SSID and device configuration, firmware updates, SSH/CLI access, inventory management, AP site templating, captive portal, live status and 24-hour reporting.
WatchGuard Standard Wi-Fi Management (Service Subscription - Hardware Required)
-
WatchGuard Standard Wi-Fi Management for AP332CR - 1 Year #WGAP33222101Get a Quote
-
WatchGuard Standard Wi-Fi Management for AP332CR - 3 Year #WGAP33222103Get a Quote
-
WatchGuard Standard Wi-Fi Management for AP332CR - 5 Year #WGAP33222105Get a Quote
WatchGuard Standard Wi-Fi Management Renewal / Upgrade (Service Subscription - Hardware Required)
-
WatchGuard Standard Wi-Fi Management for AP332CR - 1 Year #WGAP33200621Get a Quote
-
WatchGuard Standard Wi-Fi Management for AP332CR - 3 Year #WGAP33200623Get a Quote
-
WatchGuard Standard Wi-Fi Management for AP332CR - 5 Year #WGAP33200625Get a Quote
USP Wi-Fi Management
Everything in Standard, plus syslog server output, IKEv2 VPN (remote access point), reporting and visibility extended from 24 hours to 30 days, and access to future WatchGuard portfolio integrations and Wi-Fi features as they are released.
WatchGuard USP Wi-Fi Management (Service Subscription - Hardware Required)
-
WatchGuard USP Wi-Fi Management for AP332CR - 1 Year #WGAP33222001Get a Quote
-
WatchGuard USP Wi-Fi Management for AP332CR - 3 Year #WGAP33222003Get a Quote
-
WatchGuard USP Wi-Fi Management for AP332CR - 5 Year #WGAP33222005Get a Quote
WatchGuard USP Wi-Fi Management Renewal / Upgrade (Service Subscription - Hardware Required)
-
WatchGuard USP Wi-Fi Management for AP332CR - 1 Year #WGAP33222021Get a Quote
-
WatchGuard USP Wi-Fi Management for AP332CR - 3 Year #WGAP33222023Get a Quote
-
WatchGuard USP Wi-Fi Management for AP332CR - 5 Year #WGAP33222025Get a Quote
WatchGuard AP332CR Specifications
WatchGuard published maximums, measured under the test conditions noted below.
Wi-Fi — 2.4 GHz (802.11b/g/n/ax)
| Frequency Band (USA & Canada) | 2400 ~ 2473.5 MHz |
|---|---|
| Modulation Type | DSSS, OFDM, OFDMA |
| Peak Data Rates | Up to 574 Mbps (MCS 0-15) |
| Antenna | Two 5 dBi external SMA-type antennas |
| Maximum Transmit Power | Up to 23 dBm with 5 dBi antenna gain |
Wi-Fi — 5 GHz (802.11a/n/ac/ax)
| Frequency Band (USA & Canada) | 5.15 ~ 5.25 GHz, 5.25 ~ 5.35 GHz, 5.725 ~ 5.825 GHz |
|---|---|
| Dynamic Frequency Selection | DFS and DFS2 |
| Modulation Type | OFDM, OFDMA |
| Peak Data Rates | Up to 1201 Mbps (MCS 0-15) |
| Antenna | Two 5 dBi external SMA-type antennas |
| Maximum Transmit Power | Up to 25 dBm with 5 dBi antenna gain |
Operational
| Number of Radios | 2 — one 2.4 GHz and one 5 GHz for simultaneous dual-band client access |
|---|---|
| MIMO | 2×2 for 2.4 and 5 GHz radios |
| Spatial Streams | 2 for 2.4 and 5 GHz radios |
| RF Transmit Power | 22 dBm per radio chain (max); actual Tx power depends on country regulatory domain |
| Simultaneous MU-MIMO Clients | 4 |
| Users in a MU-MIMO group with a 2×2 client | 2 |
| Bandwidth Agility | Yes |
| DFS Compliance | Supported in compliance with the latest FCC, CE, IC, CB, TELEC and KCC amendments |
Ports
| LAN / PoE+ | Multi-Gigabit Ethernet on an IP67-rated weatherproof RJ-45 at 1/2.5 Gbps — connects to the wired LAN and WatchGuard Cloud, and powers the device over 802.3at PoE+ (Class 4) |
|---|---|
| Power | 802.3at PoE+ only — no DC input on this model |
Physical & Environmental
| Physical Dimensions | 190 × 124 × 52.5 mm (7.48 × 4.07 × 2.07 in) |
|---|---|
| Weight | 4.07 kg (8.972 lb) |
| Enclosure Rating | IP67 sealed |
| Power Consumption | 15.9 W (max) / 11.65 W (average) |
| Chipset and Memory | Qualcomm IPQ6010-0 4-core A53 @ 1.8 GHz, 1 GB DDR3L RAM, 256 MB NAND and 8 MB SPI flash |
| Operating Temperature | -20–60°C (-4–140°F) |
| Storage Temperature | -40–80°C (-40–176°F) |
| Operating Humidity | 5% to 90% non-condensing |
Regulatory
| RF — USA | FCC Part 15.247, 15.407 |
|---|---|
| RF — Canada | IC |
| RF — Europe | CE EN300.328, EN301.893 |
| Safety — USA | UL |
| Safety — Canada | cUL |
| Safety — European Union | EN, RoHS |
Actual transmit power is the lowest of the value set in the radio settings, the maximum allowed in the regulatory domain, and the maximum supported by the radio. The per-radio-chain maximum of 22 dBm and the 23/25 dBm band figures measure different things.
Frequency bands shown are the USA and Canada (FCC/IC) transmission ranges; the European (ETSI) ranges differ.
The published weight of 4.07 kg (8.972 lb) is several times that of WatchGuard's indoor access points and repeats the figure 4.07 from the dimensions row on the same line. Reproduced as published — confirm with us before specifying mounting hardware.
The datasheet gives operating humidity as "-5% to 90%". Negative humidity is not a physical quantity; read as 5% to 90%, matching every other model in the range.
The feature summary quotes 547 Mbps on 2.4 GHz where the specification table gives 574 Mbps. The table figure is shown, and matches the rest of the Wi-Fi 6 range.
"ODFMA" in the 5 GHz modulation row has been read as OFDMA.
The source catalogue lists no accessories for this model. The universal bracket and power supply sold with the indoor access points are not shown for the AP332CR, which is PoE-only and ships with its own outdoor mount.
Part numbers are WatchGuard catalogue SKUs and are listed for reference. Availability and lead time are confirmed at quote.
AP332CR
IP67-rated outdoor Wi-Fi 6 with 2x2 OFDMA, a 2.5 GbE port, four external SMA antennas and PoE+ power.
Ideal for Mid-Density Outdoor and Rugged Deployments
WatchGuard's mid-performance Wi-Fi 6 access point is the ideal choice for mid-density outdoor/rugged environments of all shapes and sizes. It delivers secure WPA3 encryption for a fast, safe, seamless Wi-Fi 6 experience. The AP332CR delivers superior Wi-Fi 6 performance and WPA3 encrypted security across distributed networks and is ideal for building an easily scalable network in rugged or outdoor deployment conditions.
Cloud-Based Management
You can manage the AP332CR with WatchGuard Cloud. WatchGuard Cloud delivers one simplified platform for Wi-Fi management to easily deploy, configure, and report on one unified platform. WatchGuard Cloud eliminates the need for any physical or virtual infrastructure requirements. WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.
Cross-Platform Benefits
Simple VPN connectivity to Fireboxes managed in WatchGuard Cloud. Multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform with enhanced activation and intelligent inventory management. Captive Portal creation with custom corporate branding, such as company logos, background, and thumbnail images. Enterprise authentication is delivered through easily managed WatchGuard Authentication domains. Centralized management to WatchGuard's portfolio of products including AuthPoint, Firebox, and endpoint solutions.
